Anchorage Section

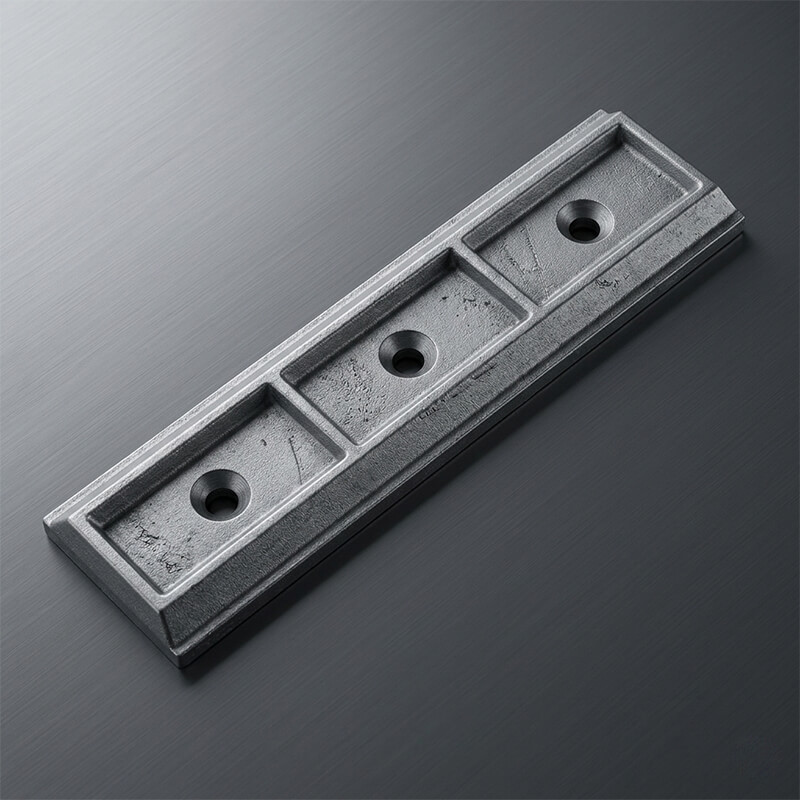

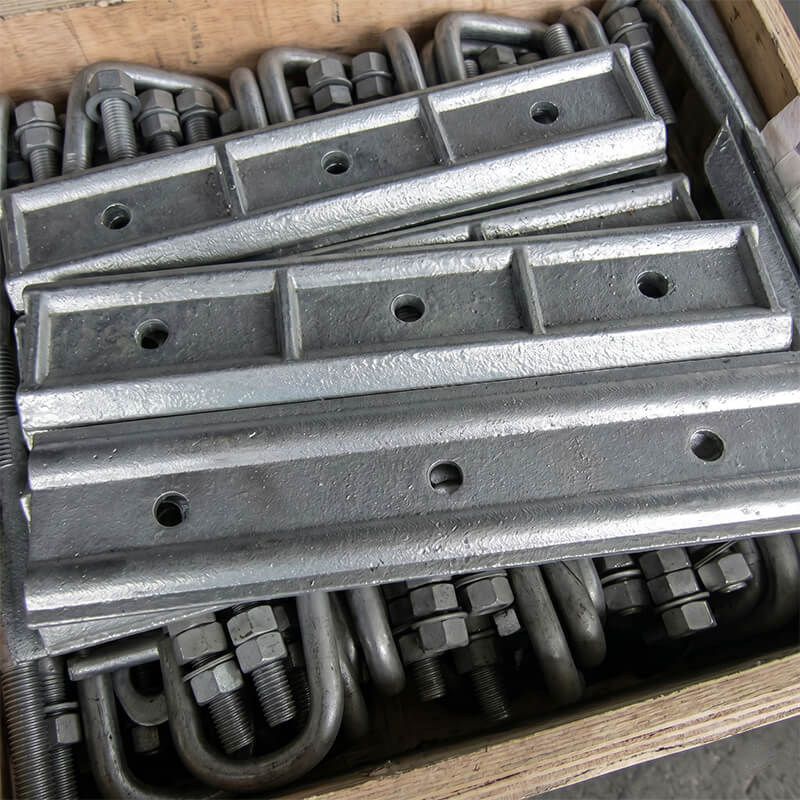

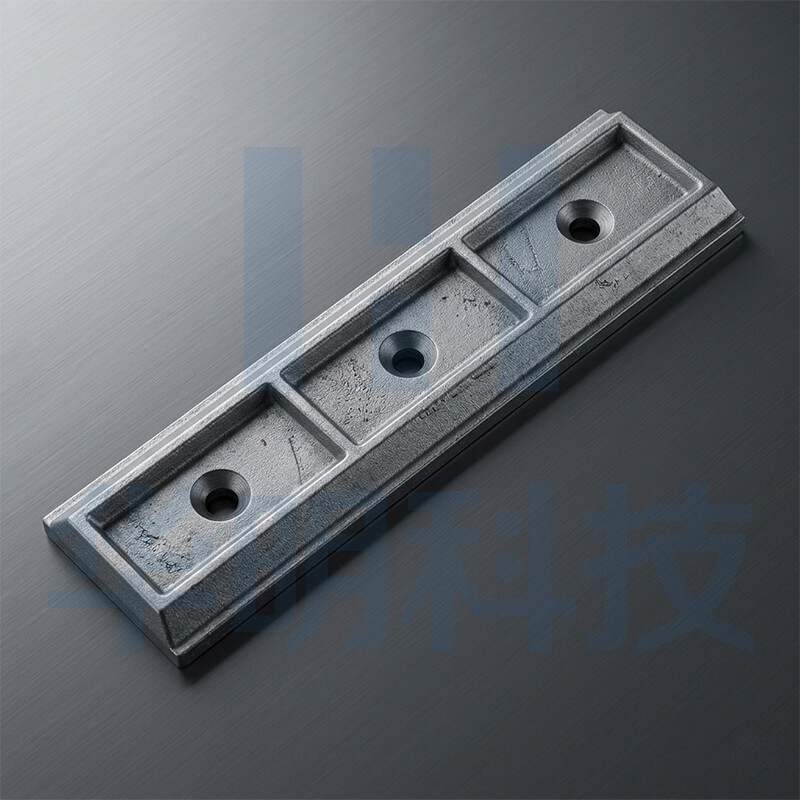

Engineered for secure foundation attachment, our commercial-grade rubber dam anchorage sections provide a highly reliable fastening system for municipal and industrial water control projects. Designed to accommodate varying upstream water levels, the hardware can be seamlessly installed in either single or double anchoring configurations. Manufactured directly in our facility, the complete suite includes heavy-duty backing plates and specialized mounting bolts (available from M20 to M360 specifications). Contact our factory directly for OEM fabrication, detailed dimensional datasheets, and bulk order pricing.

Category :
Anchorage Section
Browse number : ...
Release time : 2026-04-21

Get Bulk Pricing

Detailed Description

The anchoring and fastening system is relatively simple and easy to install. Depending on upstream water levels, either a single or a double anchoring configuration may be used to secure the rubber dam to its foundation.

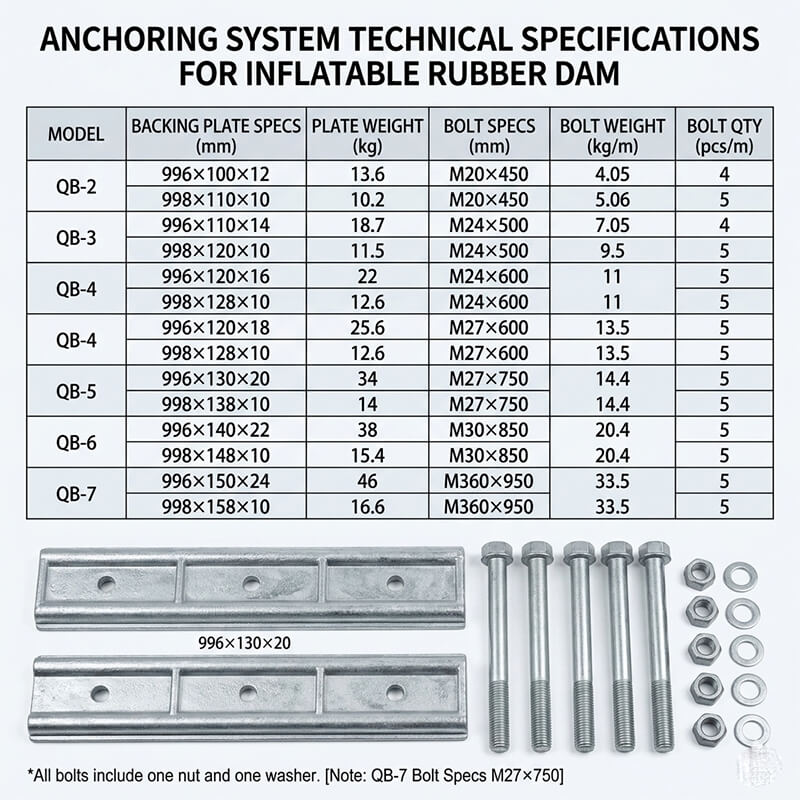

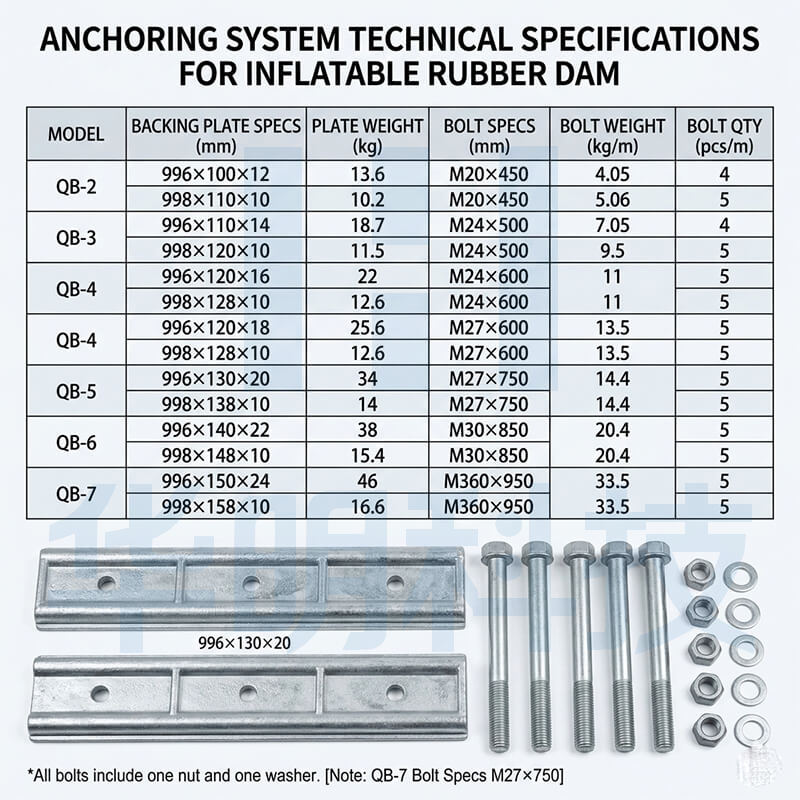

Model	Plate (Backing Plate) Specs	Plate Weight	Bolt Specs (mm)	Bolt Weight (kg/m)	Bolt Qty (pcs/m)
QB-2	996 × 100 × 12	13.6	M20 × 450	4.05	4
QB-2	998 × 110 × 10	10.2	M20 × 450	5.06	5
QB-3	996 × 110 × 14	18.7	M24 × 500	7.05	4
QB-3	998 × 120 × 10	11.5	M24 × 500	9.5	5
QB-4	996 × 120 × 16	22	M24 × 600	11	5
QB-4	998 × 128 × 10	12.6	M24 × 600	11	5
QB-4	996 × 120 × 18	25.6	M27 × 600	13.5	5
QB-4	998 × 128 × 10	12.6	M27 × 600	13.5	5
QB-5	996 × 130 × 20	34	M27 × 750	14.4	5
QB-5	998 × 138 × 10	14	M27 × 750	14.4	5
QB-6	996 × 140 × 22	38	M30 × 850	20.4	5
QB-6	998 × 148 × 10	15.4	M30 × 850	20.4	5
QB-7	996 × 150 × 24	46	M360 × 950	33.5	5
QB-7	998 × 158 × 10	16.6	M360 × 950	33.5	5
